250 Amp Waterproof Circuit Breaker With Manual Reset Button Surface Mount Hi-Amp Breakers 250A
Product Description
| Product Name | Ignition Protected Circuit Breaker Manual Reset |
| Type | Single Pole Thermal Type |
| Voltage Rating | 48V dc |
| Ampere Rating | 250A 250Amps |
| Interrupting Rating | 5KA @32VDC, 3KA @48VDC |
| Body Material | UL-rated 94V0 Thermoplastic |
| Protection Grade | IP 67 |
| Termination Stud | 1/4-28 or 3/8-16 thread |
| Operating Temp | –25°F (–32°C) to 180°F (82°C) |
| Storage Temp | –30°F (–34°C) to 300°F (149°C) |
| Compliance | SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected) |
Features of E99 250A circuit breaker
Function: This 250Amp Car Audio In-line Circuit Breaker effectively stops power surges from damaging your systems, protects your trolling motor from electrical damage and short circuit

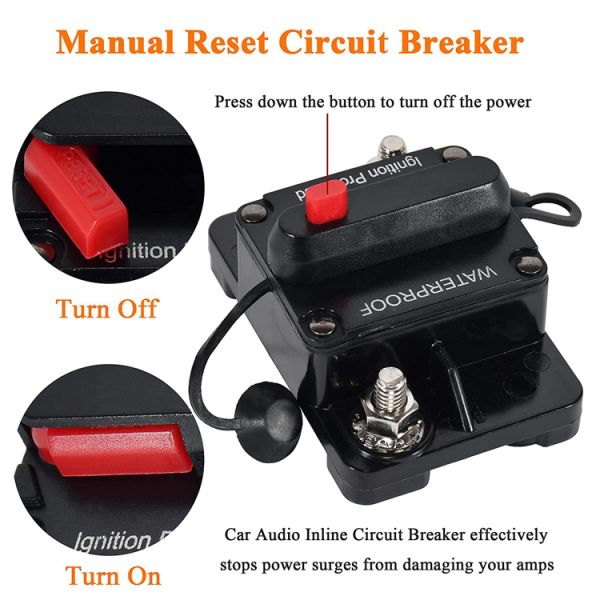

Manual Reset Button. It comes with manual reset button, can be used as an on-off button switch for batteries.
In place of an inline fuse holder, there’s no need to replace the inline fuses
Compact and light-weight design
water resistant, high-tech water resistant housing makes it safer. Features 2 rubber dust covers for water protection
Easy to Install: Car Audio Inline Circuit Breaker can be mounted on any Panel or Firewall, it can also be used as a Kill Switch from the battery to an inverter in a vehicle.
Wide Application. Typically used in trucks, buses, RVs and marine applications; It’s also suitable for use in battery charges and DC audio systems to provide protection in the event of current overload or short circuit.
250A circuit breaker details
Applications of 250A circuit breakers
Standard Package
1pcs per bag, 100pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Warmly Reminder:
1. Please use it under right work temperature, to avoid it is too heat and stop work.
2. Please correctly push the button to avoid damage the Circuit Breaker.
-
Company warehouse
-
-
Reomax Electronics Co., Ltd was founded in 1999, focused on manufacturing electronic protection components for over-current, over-temperature and other circuit protection. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies, vehicles and marine applications.
Q: Are you trading company or manufacturer ?
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
